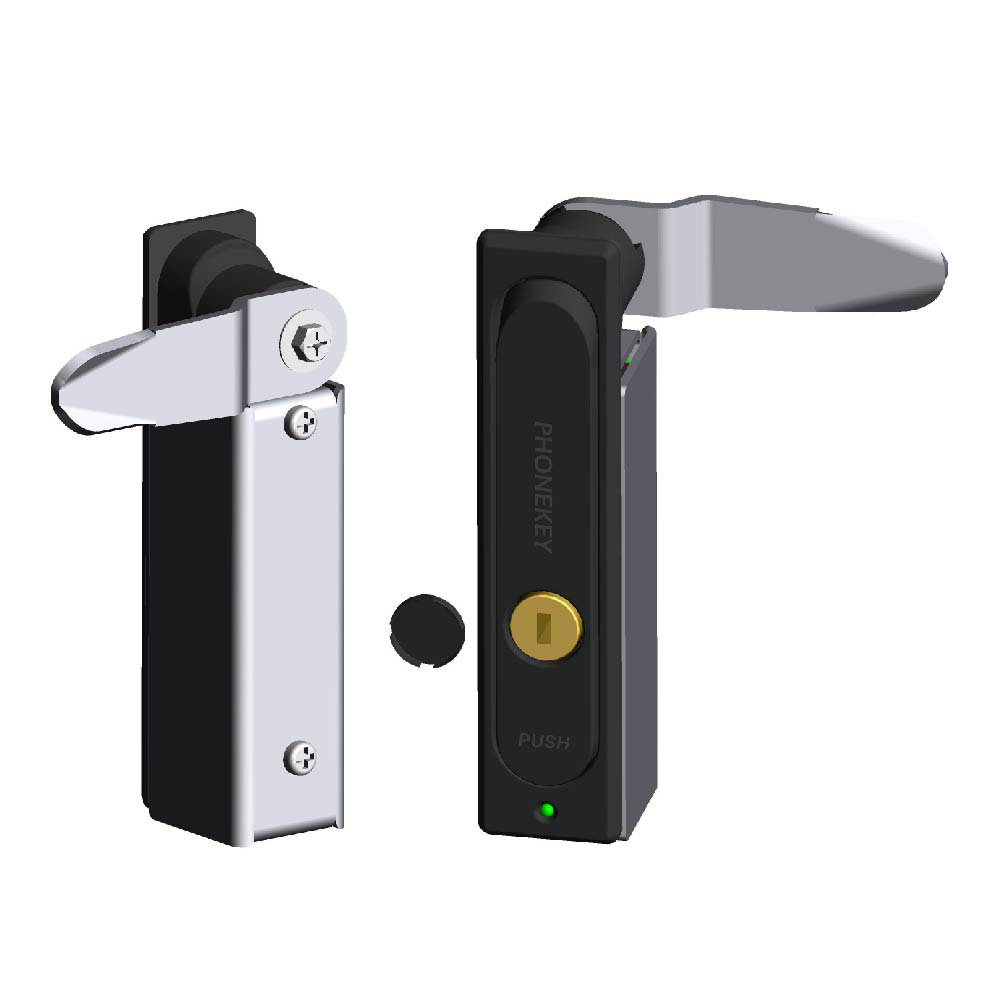

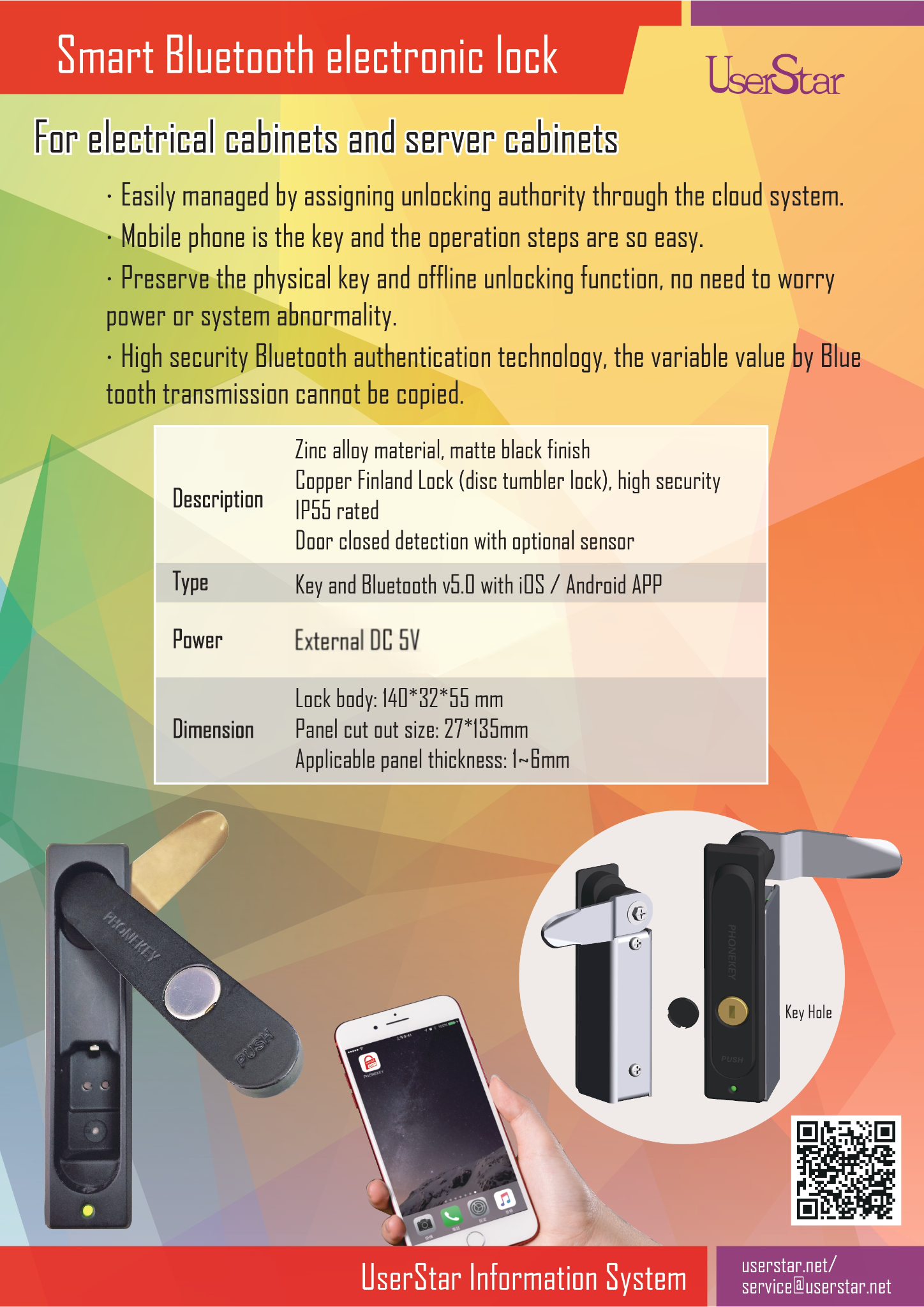

Waterproof Bluetooth electronic lock for electrical cabinets and server cabinets

• Easily managed by assigning unlocking authority through the cloud system.
• Mobile phone is the key and the operation steps are so easy.
• Preserve the physical key and offline unlocking function, no need to worry power or system abnormality.
• Use NFC mobile phone to read warranty card and set a new device password of lock.
Encryption technology patent, the transmission code by Bluetooth cannot be copied and reused.

Operating Steps:
• Press the handle to wake up the lock.
• Unlock when Mobile phone connecting with the lock.
• After the electromagnet latch retracting, the handle will bounce and can open the door.
• The electromagnet latch will extend after 6 seconds retracting. Close the door and put the handle back to lock.

Instant unlock record and message return system:
• Before using the cabinet, the operator needs to sign in the mobile APP. After pressing the door handle of lock to wake up the Bluetooth, the mobile phone and the lock are automatically connected and unlock the door by authentication through cloud system.
• After the maintenance work is finished and the cabinet door is closed and automatically locked. Through the message return system, the lock is connected by mobile phone and the door close detection is confirmed. Then the completion message will be notified to the cloud system.

• Zinc alloy material, matte black finish
• Copper Finland Lock (disc tumbler lock), high security
• Size, 140*32*55 mm
• Panel cut out size, 27*135mm
• Applicable panel thickness, 1~6mm
• Suitable for left and right door installation
• One built-in spare CR2 lithium battery, external 5VDC power supply
• Bluetooth 4.0, iOS / Android APP
• IP55 rated
• Can be used with sensor to detect door status
