Bluetooth mobile phone unlock locker with external keypad or key

Bluetooth electronic lock for rental locker

Unattended management

The era of unattended management is coming. Rental lockers in public places such as sports centers or cosmetic medical centers can be unlocked or managed by mobile phones, saving manpower and resources.

UserStar integrates Bluetooth lock and management system to provide the best choice for operators to develop intelligent lockers. The following two locks are available for easy management and convenient operation.

Type 1- Bluetooth, Keypad

Power: 1 built-in CR2 battery, external DC 5V; Urgent power supply hole (micro USB) at the bottom of the keypad.
After unlocking for 6 seconds, the lock tongue automatically extends (locks).
Door closed detection.
The lock body can be mounted on the door or cabinet body (locked tongues in different directions).

Size
Lock body: 85*58*20 mm
Keypad: 72*43*14.5 mm

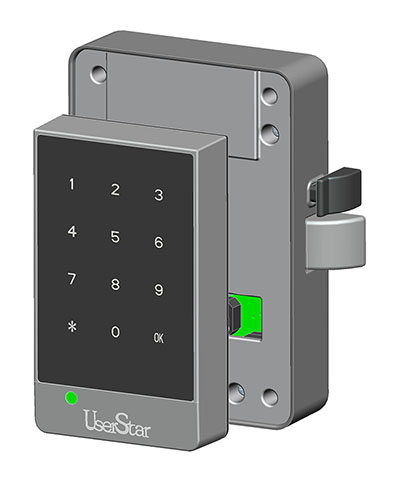

Bluetooth lock-keypad
Bluetooth lock-keypad
Type 2- Bluetooth, Physical Key.
Power: Built-in 1 CR2 battery, external DC 5V.
After unlocking for 6 seconds, the lock tongue automatically extends (locks).
Door closed detection.
The lock body can be mounted on the door or cabinet body (locked tongues in different directions).
Option: Can be combined with a physical key.
Use built-in button or external (waterproof) button.Size
Lock body: 85*58*20 mm
Bluetooth lock-key
Bluetooth lock-key

Operating procedures :

Rent

  1. Register member account
  2. Select the locker, touch the keypad of the locker or press the button to wake up the Bluetooth lock
  3. Select the locker number on the mobile APP to connect:
    Red light (rented status): need to unlock by the APP network key or password
    Green light (idle status): User can set the password of the keypad for renting and unlocking
  4. After the rental operation and unlock the locker, place personal belongings in the locker
  5. Close the door of locker

Return

  1. Enter the password or use the mobile phone APP to open the locker
  2. Take out personal belongings
  3. Close the door of locker
  4. Choose return on the mobile APP, the system will detect whether the locker door is closed and then end the rental
